Replacing rear wheel bearing: Notes

Information

• The wheel bearing has a magnetized multiple seal, which acts as a pulse sender for the wheel speed sensor  .

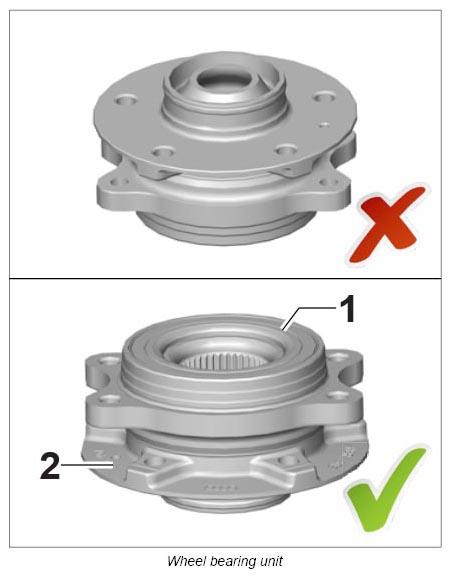

• The multiple-pole seal -1- must always face upwards when the wheel bearing is set down (this does not apply when pressing the wheel hub into the wheel bearing). Do not damage the multiple seal and do not come into contact with magnetic objects (e.g. magnetized screwdriver, magnet)  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Clamp the wheel bearing housing in a vice with aluminum protective jaws.

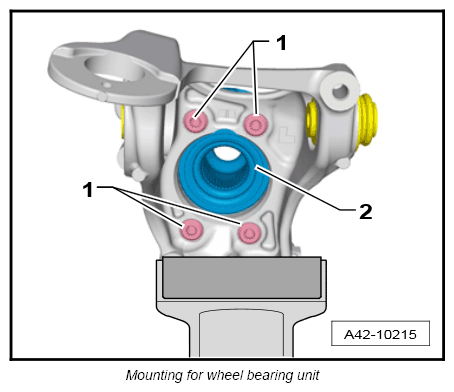

2. Unscrew fastening screws -1-  and remove wheel bearing unit -2-.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

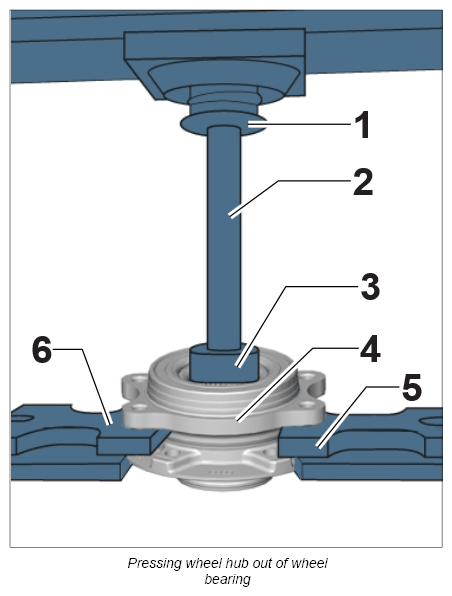

3. Press wheel hub out of the wheel bearing.
   1. Press tool
   2. Sleeve T10230/3 from assembly tool T10230
   3. Pressure piece T10230/8 from assembly tool T10230
   4. Wheel bearing unit
   5. Pressure plate VW 402
   6. Pressure plate VW 401

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   1. 3.1. Fit special tools as shown in → Pressing wheel hub out of wheel bearing  .
   2. 3.2. Press wheel hub out of the wheel bearing.
4. Press inner bearing ring off the wheel hub.

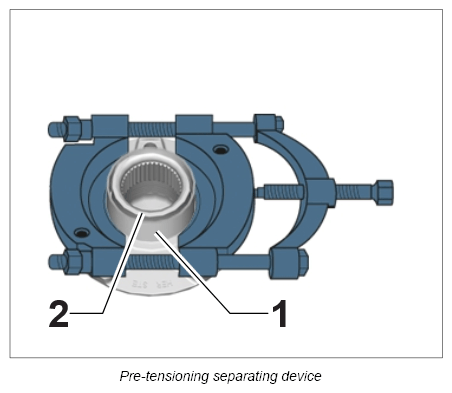

   1. 4.1. Separating device Nr.112-2  must be inserted between the inner bearing ring and wheel hub. Then pre-tension with the spindle.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

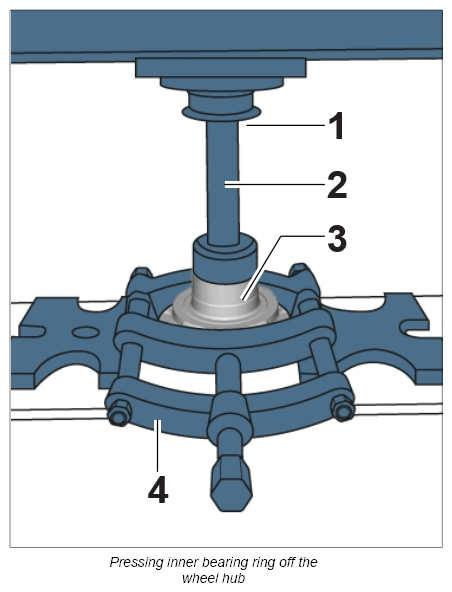

   2. 4.2. Fit special tools as shown in → Pressing inner bearing ring off the wheel hub  .
      1. Press tool
      2. Sleeve T10230/3 from assembly tool T10230
      3. Pressure piece T10230/8 from assembly tool T10230
      4. Separating device Nr.11 2-2

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   3. 4.3. Press inner bearing ring off the wheel hub.
