Subsequent work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install rear coil spring → 427219 REMOVING AND INSTALLING REAR COIL SPRING .
  2. Fit rear brake disc → 465319 REMOVING AND INSTALLING REAR BRAKE DISC → 465419 REMOVING AND INSTALLING REAR BRAKE DISC (PCCB) .
  3. Install rear brake calliper → 474119 REMOVING AND INSTALLING REAR BRAKE CALLIPER .

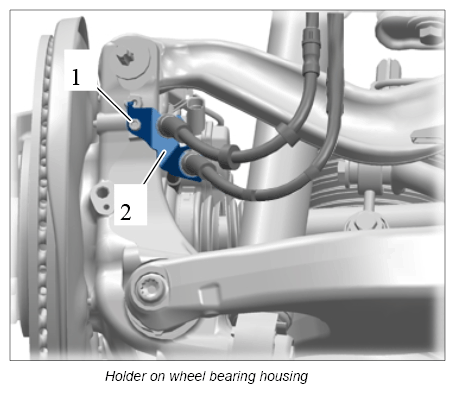

  4. Fit holder -2-  and screw in and tighten fastening screw -1-. Tightening torque 9 Nm (6.5 ft. lb.)
    G12888076Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Fit wheel → 440519 REMOVING AND INSTALLING WHEEL .
  6. Perform suspension alignment → 449503 SUSPENSION ALIGNMENT, COMPLETE .
