Replacing upper control arm: Notes

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

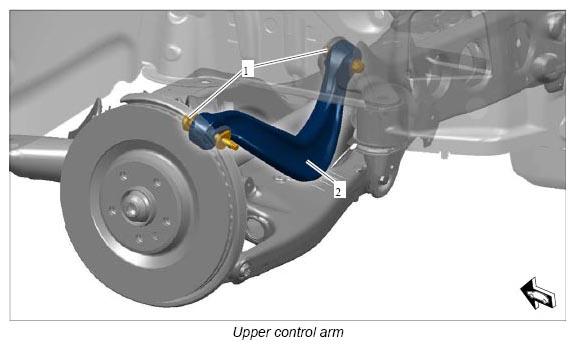

G12888053Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mark the position of the eccentric screw with respect to the wheel bearing housing for re-installation.
  2. Unscrew fastening screws for the control arm -2-  at the chassis subframe and at the wheel bearing housing (eccentric screw) -1-.
  3. Remove control arm.
