Technical values
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Drive shaft |
Maximum force for pressing in joints |
Contact force |
+20 kN |
|
|
| Drive shaft |

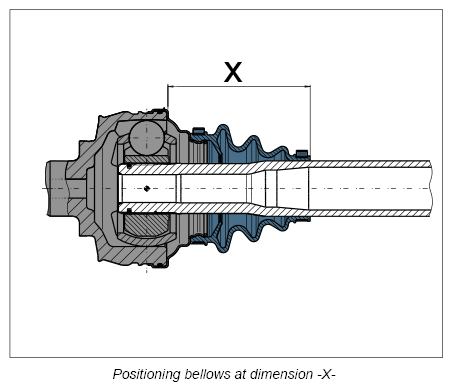

Positioning bellows |
Dimension -X- |
+90 mm |
+3 mm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
