Preliminary work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove wheel bearing housing. → 425219 REMOVING AND INSTALLING REAR WHEEL BEARING HOUSING
  2. Unscrew fastening screws -1-  and remove cover plate for brake disc -2-.
    G12888030Courtesy of PORSCHE CARS NORTH AMERICA, INC.

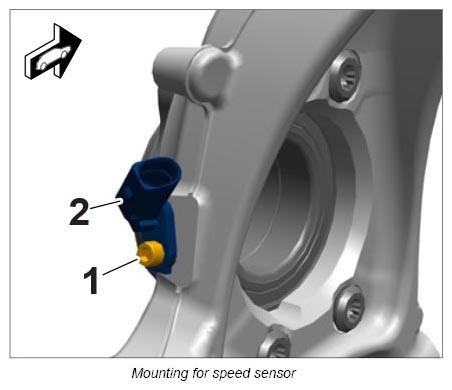

  3. Unscrew fastening screw -1 -  and remove speed sensor -2-.
    G12888031Courtesy of PORSCHE CARS NORTH AMERICA, INC.
