Removing lower trailing arm

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

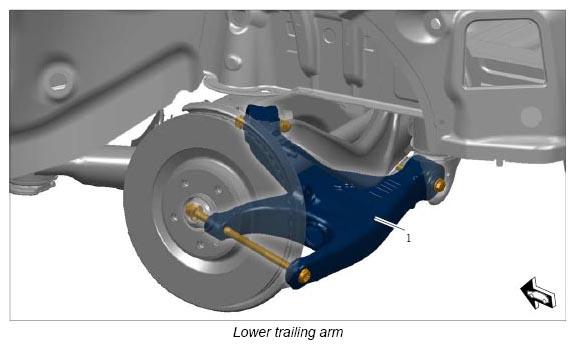

G12888020Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew and remove fastening screw -2-  on the level sensor -1-.

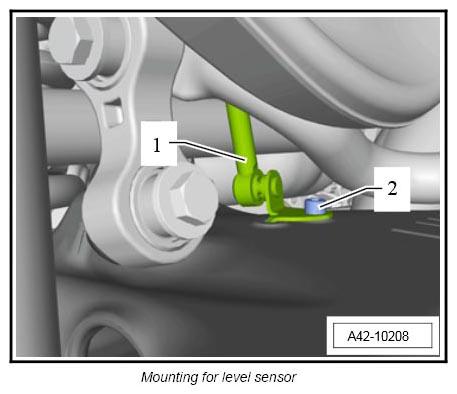

    G12888021Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew and remove fastening screw -4-  on the connecting link.

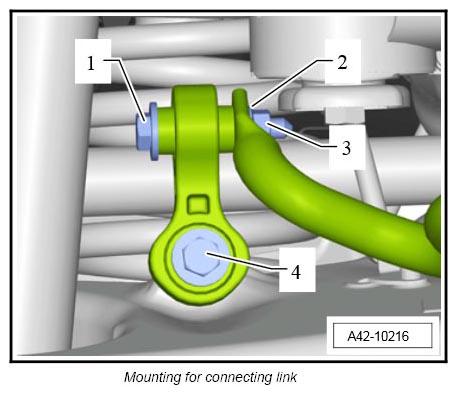

    G12888022Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Loosen lower trailing arm on the wheel bearing housing.

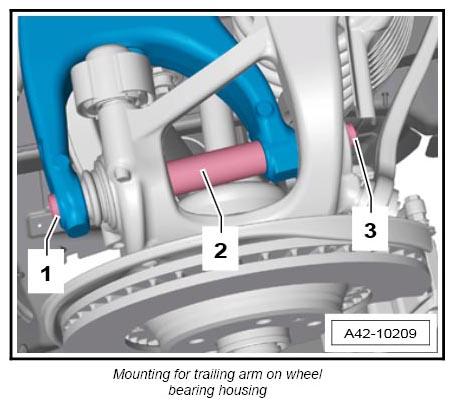

    G12888023Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 3.1. Screw off nut -3-.
    2. 3.2. Remove fastening screw -1-.
    3. 3.3. Remove spacer tube -2-.
  4. Loosen lower trailing arm on the chassis subframe.

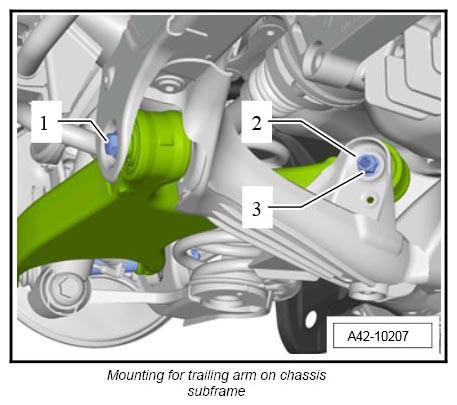

    G12888024Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 4.1. Unscrew and remove fastening screw -1-.
    2. 4.2. Unscrew nut -3-  and remove fastening screw -2-.
  5. Remove lower trailing arm.
