Removing tie rod

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

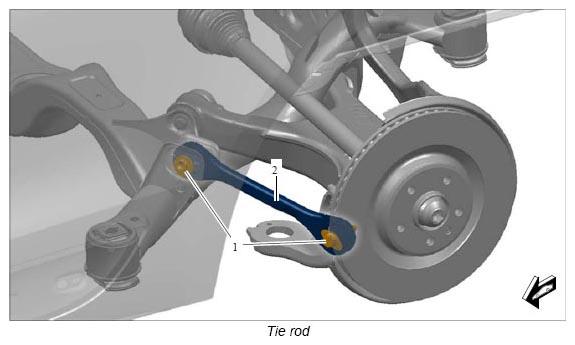

G12888016Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mark the position of the toe eccentric adjuster with respect to the chassis subframe for re-installation.
  2. Unscrew fastening screws -1-  for the tie rod -2-  at the chassis subframe (eccentric screw) and at the wheel bearing housing.
    1. 2.1. Use interchangeable head T40183  for fastening screw on the chassis subframe.
  3. Remove tie rod.
