WM 420855 Replacing rear-axle bearings: Tools
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Designation |
Type |
Number |
Description |
|

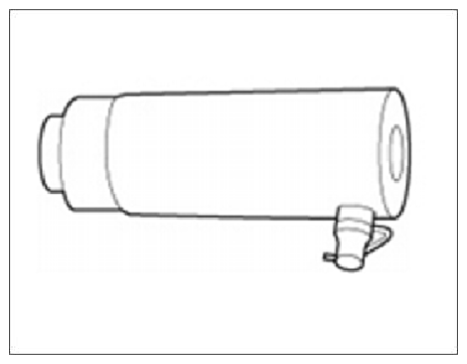

| Hydraulic cylinder |
Workshop equipment |
WE 1284 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

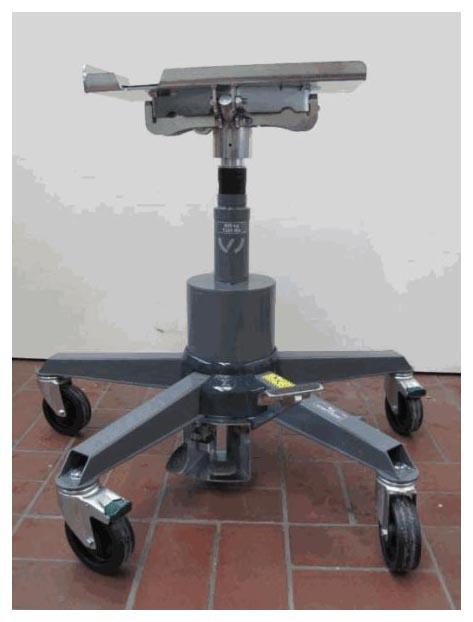

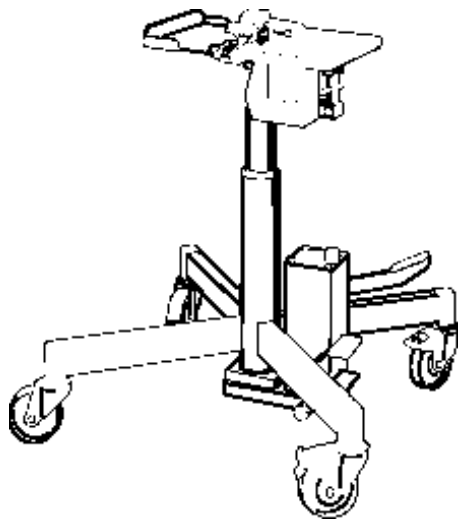

| Transmission and Engine Jack |
Workshop equipment |
WE 1599 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

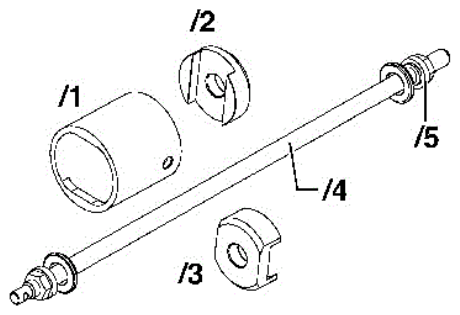

| Assembly fixture |
VW tool |
3301 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Assembly fixture |
VW tool |
3346 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

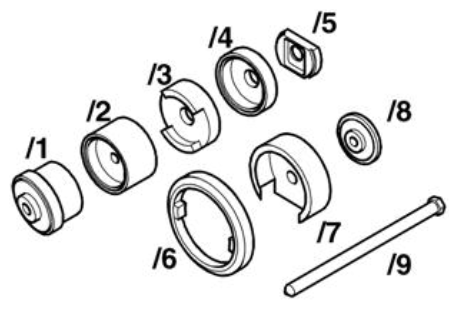

| Assembly fixture |
VW tool |
T10263 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

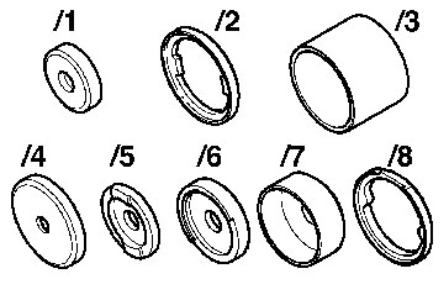

| Assembly fixture |
VW tool |
T40033 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

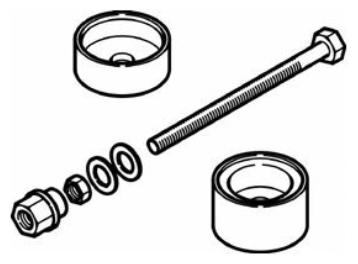

| Assembly fixture |
VW tool |
T40185 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
