Removing rear axle housing

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Press electric connector -2- for level sensor on both sides of the vehicle together and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

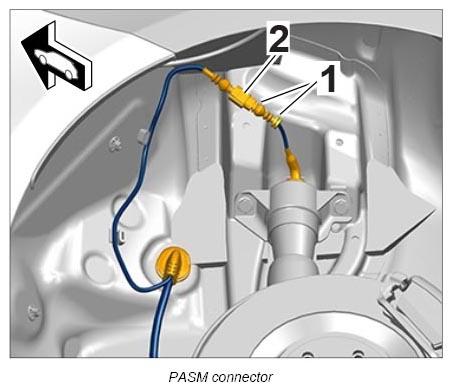

Only for vehicles with PASM:
Release and pull off connector -2- on both sides of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

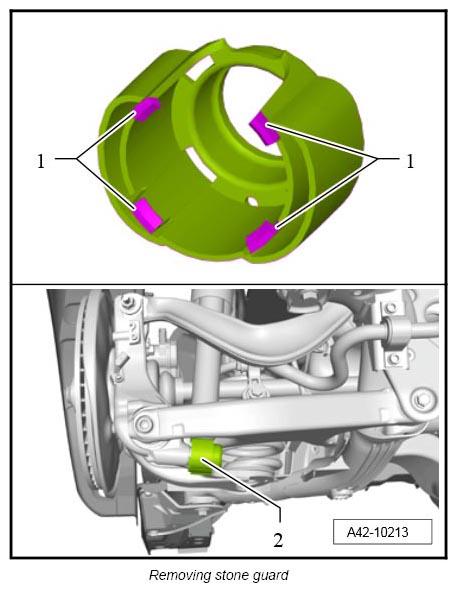

Release locking lugs -1- and remove stone guard -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

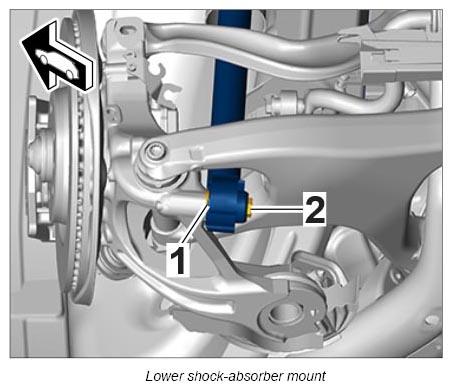

Unscrew fastening screw -2- and remove washer -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

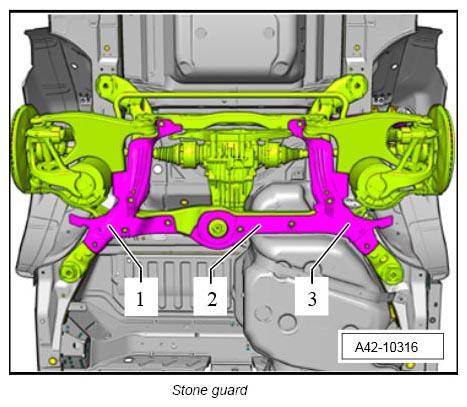

Remove stone guard -1, 2, 3- if fitted.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

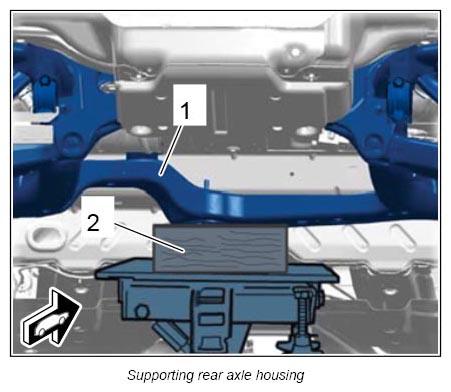

Transmission and Engine Jack WE 1599 must be positioned under the rear axle housing -1- with a suitable piece of wood -2- underneath. Also secure rear axle housing with strapping belts 9454 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

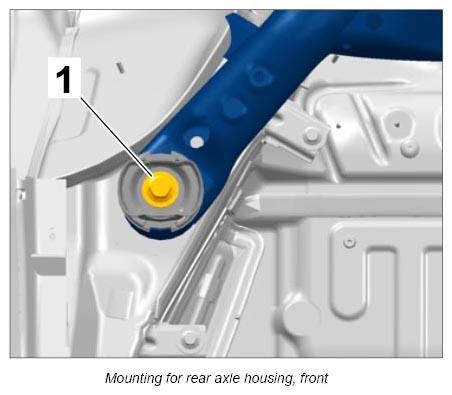

Unscrew front fastening screws -1- on both sides of the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

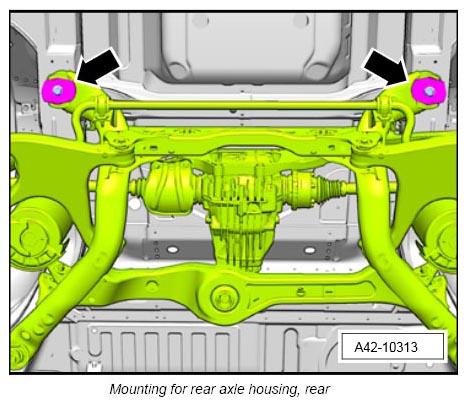

Unscrew rear fastening screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When lowering the rear axle housing, always check that all electric lines are disconnected.
Carefully lower the rear axle housing with accessories. Be careful of the brake callipers and lines while doing so.
