Installing rear axle housing
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information

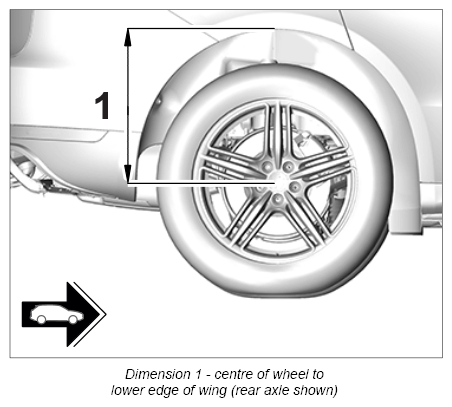

- All screws and threaded joints on the axle must be tightened in vehicle position. Vehicle position means: vehicle standing on its wheels or the wheel suspension is raised with a universal vehicle lift. Dimension -1- , from lower edge of wing to center of axle corresponds to vehicle position. The current height values can be found in
→ 4495TW ADJUSTMENT VALUES FOR SUSPENSION ALIGNMENT .
Pay particular attention to the following points!
- Screws and nuts are Geomet-coated and must not be greased .
- Installation is performed in reverse order.
Observe specified tightening torques:
Rear axle housing to body, front: Initial tightening 115 Nm (85 ft. lb.) Final tightening +90°
Rear axle housing to body, rear: Initial tightening 115 Nm (85 ft. lb.) Final tightening +90°
Shock absorber to wheel bearing housing: Initial tightening 150 Nm (111 ft. lb.) Final tightening +180°
