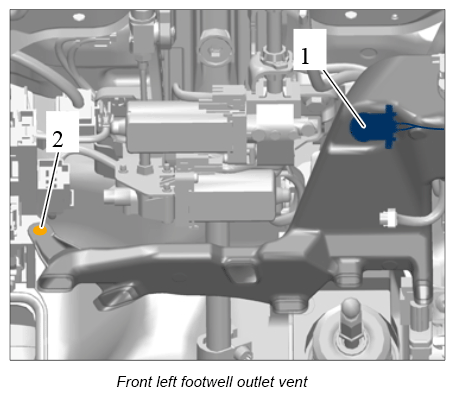

Removing front left footwell outlet vent
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Release and disconnect connector -1-
for the temperature sensor.
- Unscrew fastening screw -2-
.
- Guide footwell outlet vent out to the left.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

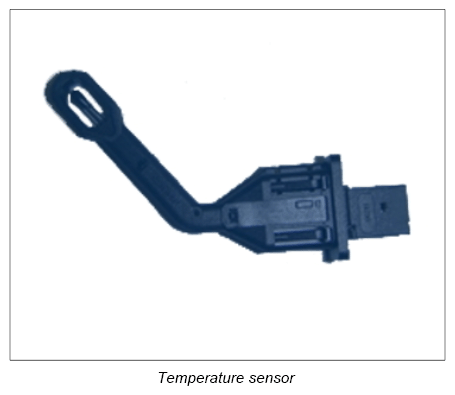

- If the footwell outlet vent will be replaced, the temperature sensor must be converted beforehand.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
