Removing heat exchanger supply hose

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The procedure for removal and installation can be different for other vehicle types.

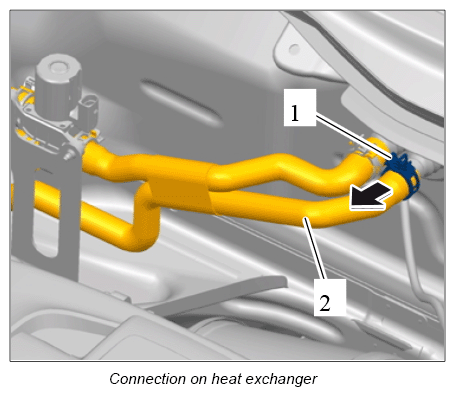

  1. Loosen spring band clamp -1 -  .
  2. Pull hose -2-  off the heat exchanger connection piece.
    G12836432Courtesy of PORSCHE CARS NORTH AMERICA, INC.

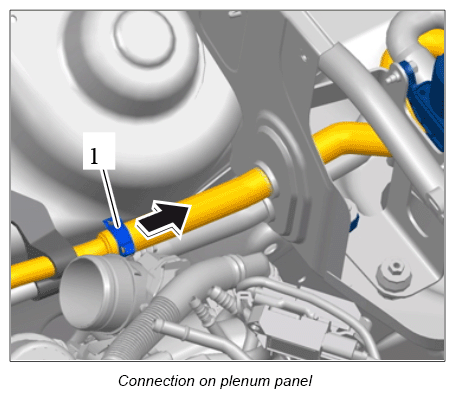

  3. Loosen spring band clamp -1-  .
    G12836433Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Pull hose through the grommet in the plenum panel wall and remove it.
