Removing actuator for camshaft
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Loosen and unscrew central sensor.

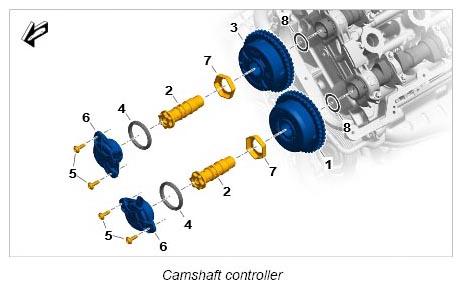

- 1.1. Loosen central screw -2-
using socket wrench for camshaft 9863
and counter using a ring wrench insert 9863/1
at the camshaft controller -3-
while doing this.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- Pull both camshaft controllers off the camshaft and remove them one by one.
