Installing actuator for camshaft

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Tightening torques, tightening sequence and assembly overviews for the engine and transmission:

Group 1: → 1X00IN TECHNICAL VALUES
Group 2: → 2X00IN TECHNICAL VALUES
Group 3: → 3X00IN TECHNICAL VALUES

Installation is performed in reverse order. Pay particular attention to the following:

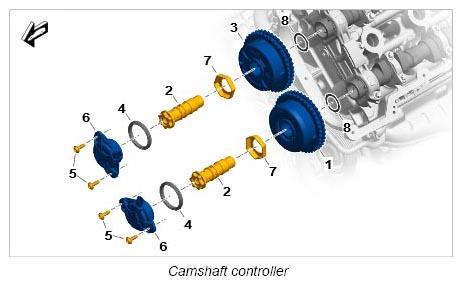

Tightening sequence for central screw for camshaft controller
Result:	Cylinder bank:	Camshaft:
1.	Bank 1, cylinders 1-3	Exhaust
2.	Bank 1, cylinders 1-3	Intake
3.	Bank 2, cylinders 4-6	Intake
4.	Bank 2, cylinders 4-6	Exhaust
