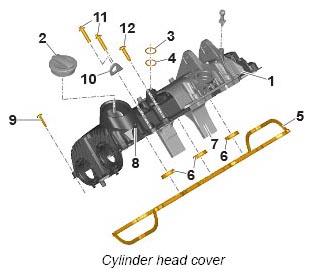

Cylinder head cover
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Cylinder head cover |
| 2 | Oil filler cover |
| 3 | O-ring, 22.5 x 2.5 FPM |
| 4 | O-ring, 22.5 x 2 x 5 HNBR |
| 5 | Cylinder head cover gasket |
| 6 | Cylinder head cover gasket, inner |
| 7 | Oil mist separator |
| 8 | Engine cover mounting |
| 9 | Screw |
| 10 | Transport eyebolt |
| 11 | Screw |
| 12 | Screw |

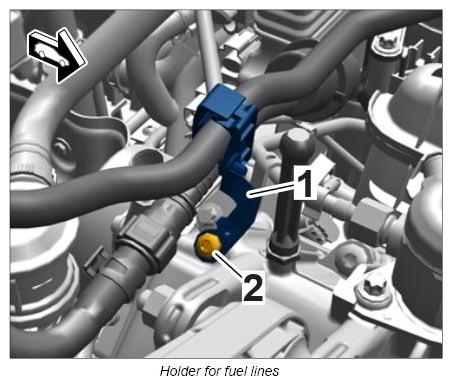

- Holder
- Fastening screw securing holder to cylinder head cover for cylinders 1-3 → Tightening torque: 4.5 Nm (3 ft lb.)
