Remove the cylinder head cover for cylinders 4-6

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the fastening screws on the cylinder head cover for -14 to 1-  . (Depending on the version, the sequence shown may differ from the illustration. See Technical values.)
  2. Push the air-conditioning lines to one side.
  3. Remove the cover.

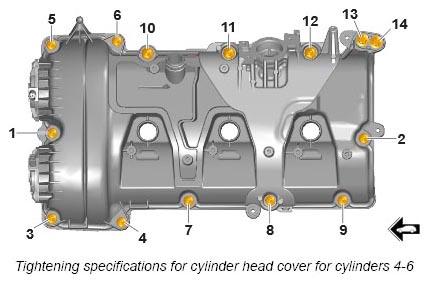

    Fig 1: Cylinder Head Cover Screws Tightening Sequence
    G12833468Courtesy of PORSCHE CARS NORTH AMERICA, INC.
