Install the cylinder head cover for cylinders 4-6

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

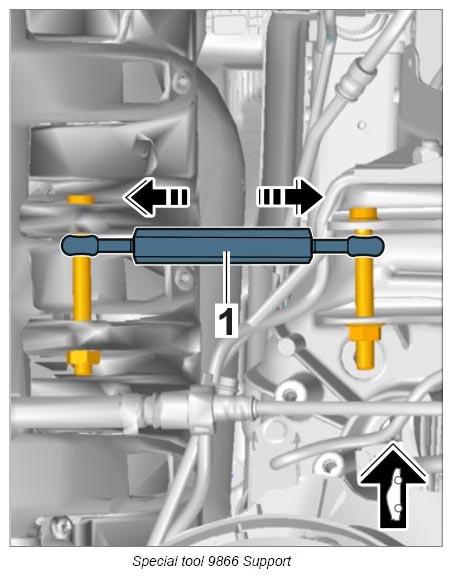

For better access in the engine compartment, use support 9866 .
Fit support -1- instead of torque support.
The engine can be moved by turning the hexagon (a/f 17) to the left or right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tip the engine with support 9866 to the right in the direction of travel.
Clean the sealing faces.
Fit cylinder head cover and screw in new screws if necessary.
Depending on the type of cylinder head cover, tighten screws one after the other (depending on type: see Technical values).
