Removing cylinder head

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cylinder head.
    1. 1.1. Loosen screws slowly and evenly in the sequence -8 - 1-  .
    2. 1.2. Remove cylinder head.
    3. 1.3. Remove seal.

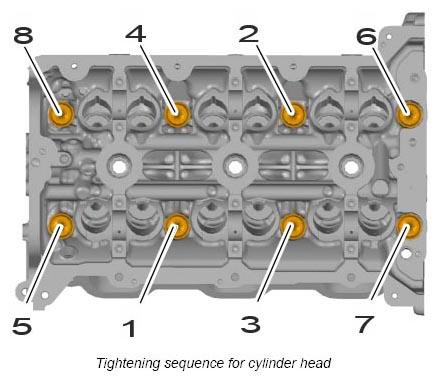

      Fig 1: Cylinder Head Screws Tightening Sequence
      G12833444Courtesy of PORSCHE CARS NORTH AMERICA, INC.
