Preliminary work

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Secure engine to assembly support. → 1001IN SECURING ENGINE ON ASSEMBLY SUPPORT (MOUNTING BRACKET)
  2. Remove turbocharger. → 213019 REMOVING AND INSTALLING TURBOCHARGER
  3. Remove upper part of oil pan. → 175019 REMOVING AND INSTALLING OIL GUIDE HOUSING
  4. Remove intake-air distributor. → 244619 REMOVING AND INSTALLING INTAKE-AIR DISTRIBUTOR
  5. Remove camshafts. → 150520 REMOVING AND INSTALLING CAMSHAFTS
  6. Remove chain housing cover. → 153319 REMOVING AND INSTALLING CHAIN HOUSING COVER
  7. Remove timing chain. → 153519 REMOVING AND INSTALLING TIMING CHAIN
  8. Remove deflector rail and tensioning rail on the cylinder head. → 154719 REMOVING AND INSTALLING GUIDE AND TENSIONING RAILS
  9. Disconnect fuel connection line at the fuel collection pipe. → 243019 REMOVING AND INSTALLING FUEL DISTRIBUTOR PIPE

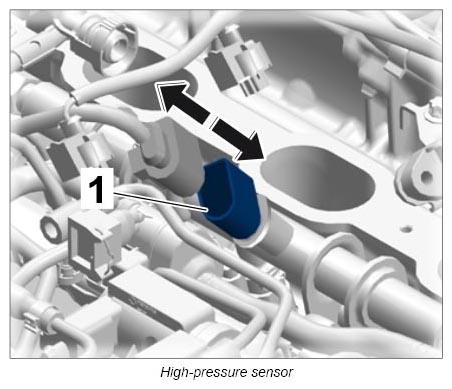

  10. Disconnect electric connector -1-  on the high-pressure sensor.
    G12833439Courtesy of PORSCHE CARS NORTH AMERICA, INC.

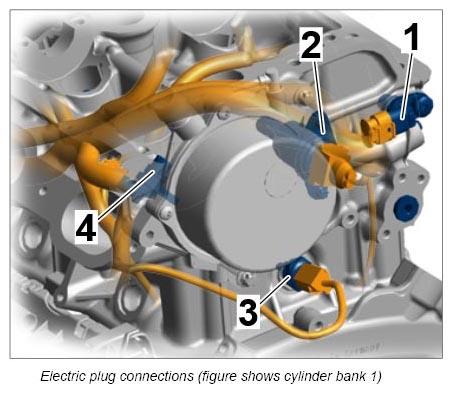

  11. Disconnect electric plug connections.
    1. 11.1. Outlet hall sender -1-  and intake hall sender -4-
    2. 11.2. Hydraulic valve for valve lift adjustment -2-
    3. 11.3. ONLY for bank 1, cylinders 1-3: Coolant temperature sensor -3-
      G12833440Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Open connections and lines must be closed off using suitable stoppers or caps.

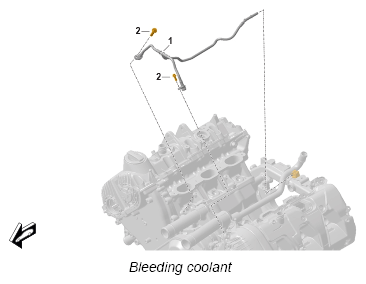

  12. Disconnect coolant vent line -1-  on the relevant cylinder head.
    1. 12.1. Unscrew screw -2-  and pull off line.
      G12833441Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • Open connections and lines must be closed off using suitable stoppers or caps.

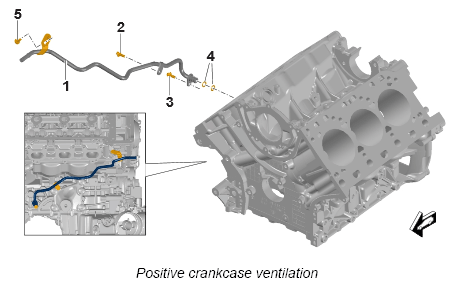

  13. Remove crankcase vent line.
    1. 13.1. Remove screws -2, 3 -  and -5-  .
    2. 13.2. Remove crankcase vent line.
      G12833442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

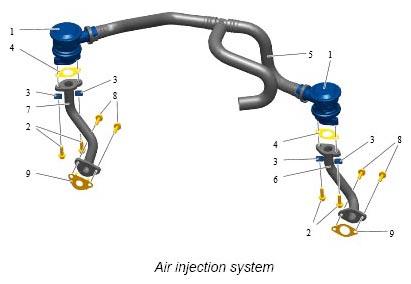

  14. Loosen secondary air valve and disconnect secondary air line at the cylinder head.
    1. 14.1. Release secondary air line -5-  and pull it off the secondary air valve -1-  .
    2. 14.2. Unscrew screws -8-  and remove secondary air valve with secondary air line.
    3. 14.3. Remove and replace seal -9-  on the cylinder head.
      G12833443Courtesy of PORSCHE CARS NORTH AMERICA, INC.
