WM 156120 Removing and installing valves: Tools
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Designation |
Type |
Number |
Description |
|
| Puller |
VW tool |
3364 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| Assembly driver |
Special tool |
9606/1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

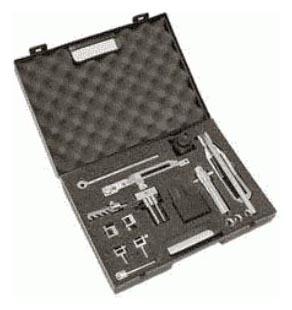

| Valve key fitting and removal tool |
Commercially available tool |
Nr.54 Pos.1 |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

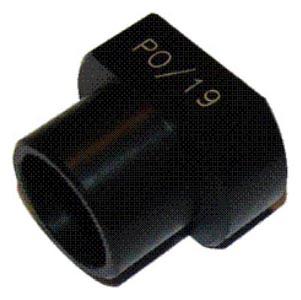

| guide bush, 31 mm |
Commercially available tool |
Nr.54 Pos.1A |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

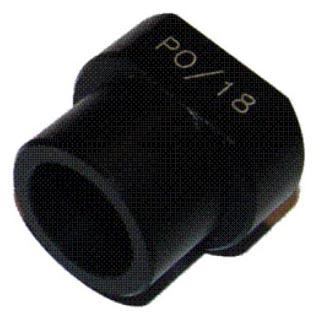

| guide bush, 28 mm |
Commercially available tool |
Nr.54 Pos.1B |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
