Special tool
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

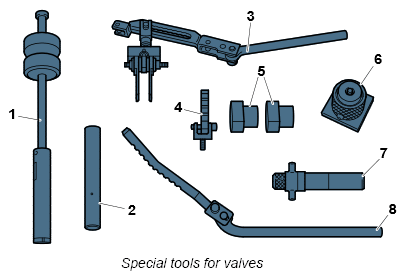

| 1 | Puller 3364 => only for removing valve-stem seals. |
| 2 | Assembly driver 9606/1 => only for fitting valve-stem seals. |
| 3 | Universal assembly bar with universal assembly driver Valve key fitting and removal tool Nr.54 Pos.1 |
| 4 | Hooking piece (fitting hook) with holder (several possible) |
| 5 | Plastic guide for intake and outlet valve guide bush, 31 mm Nr.54 Pos.1A and guide bush, 28 mm Nr.54 Pos.1B |
| 6 | Assembly fixture for valve keys |
| 7 | Assembly cartridge for valve keys |
| 8 | Assembly bar (hook) with adjustable lever |
