Removing hydraulic valve for valve lift switchover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electric plug connection on the hydraulic valve -3-  .
  2. Loosen fastening screws -4-  .
  3. Pull hydraulic valve -3-  out of the cylinder head.
    1. 3.1. Make sure that the sealing ring is also removed.

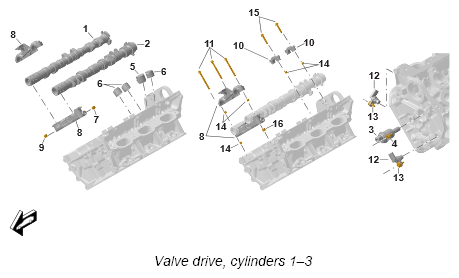

      G12833409Courtesy of PORSCHE CARS NORTH AMERICA, INC.
