Installing guide and tensioning rails

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Installation is performed in reverse order. Pay particular attention to the following:

1.1. Always use new aluminum screws.

1.2. Coat guide pads with engine oil.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

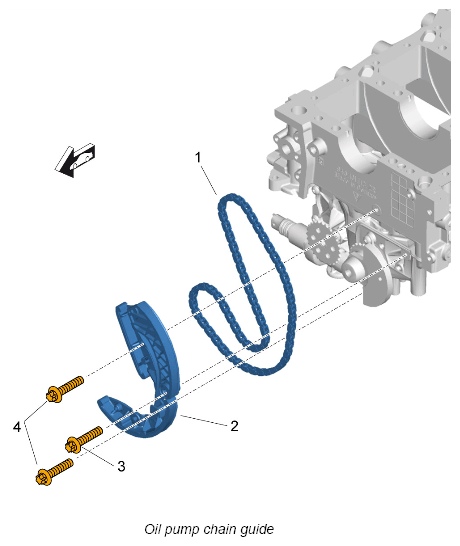

Tightening torque -3- Tightening torque 32 Nm (24 ft lb.)

Tightening torque -8- Tightening torque 20 Nm (15 ft lb.)

Tightening torque -9- Tightening torque 32 Nm (24 ft lb.)

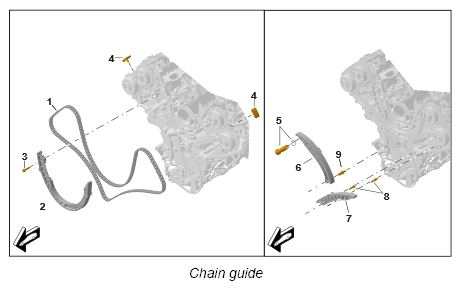

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening torque -3- Tightening torque 13 Nm (9.5 ft lb.)

Tightening torque -4- Tightening torque 13 Nm (9.5 ft lb.)
