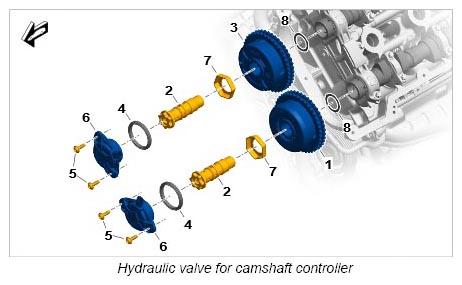

Removing solenoid/hydraulic valve (actuators) for camshaft controller
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect electric connector.
- Unscrew fastening screws -5-
.
Tool recommendation: Insert part for torque wrench 9792
- Pull hydraulic valve -6-
forward and remove it.
Information
Replace sealing rings, seals and O-rings.
- 3.1. Remove seal -4-
.
- Place hydraulic valve -6-
on a clean surface.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
