Installing solenoid/hydraulic valve (actuators) for camshaft controller

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Replace sealing rings, seals and O-rings.

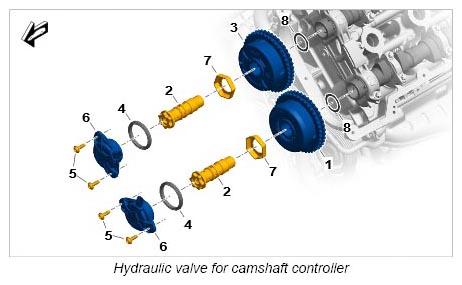

  1. Position hydraulic valve -6-  .
  2. Tighten fastening screws -5-  . Tightening torque 10 Nm (7.5 ft lb.)
    G12833404Courtesy of PORSCHE CARS NORTH AMERICA, INC.
