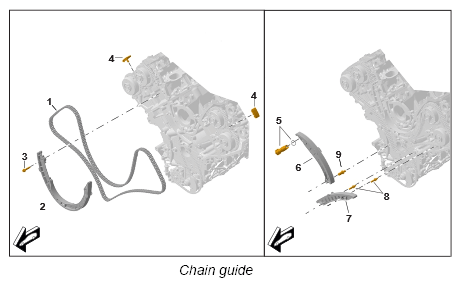

Chain guide
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Double-chain camshaft drive |
| 2 |
Deflector rail |
| 3 |
Screw, M8 x 35 → Tightening torque: 32 Nm (24 ft lb.) |
| 4 |
Guide pad |
| 5 |
Chain tensioner/replace seal |
| 6 |
Tensioning rail |
| 7 |
Guide rail |
| 8 |
Threaded bolt, M8 → Tightening torque: 20 Nm (15 ft lb.) |
| 9 |
Threaded bolt, M10 → Tightening torque: 32 Nm (24 ft lb.) |
