Securing chain housing cover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Secure aligned chain housing cover.

1.1. Tighten screws to the specified tightening torque in the sequence -1 - 30- .

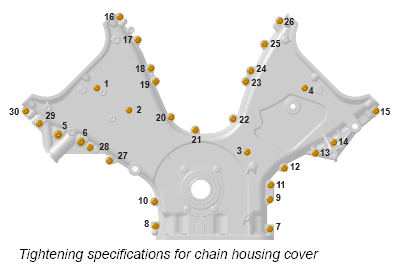

Fig 1: Chain Housing Cover Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-30	Tightening sequence
1-4	Screw, M6 x 55
5 + 6	Screw, M8 x 55
7-12	Screw, M6 x 30
13 + 14	Screw, M6 x 55
15-28	Screw, M6 x 30
29	Screw, M6 x 55
30	Screw, M6 x 30
1-4 + 7-30	Screw, M6 → Initial tightening: 4 Nm (3 ft lb.) → Final tightening: +90°
5 + 6	Screw, M8 → Initial tightening: 10 Nm (7.5 ft lb.) → Final tightening: +90°

Further installation is performed in reverse order.
