Removing chain housing cover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Chain housing cover removed incorrectly

Risk of damage to seal between oil pan and crankcase
Risk of engine leaks

→ Always reseal the oil pan when removing the chain housing cover.

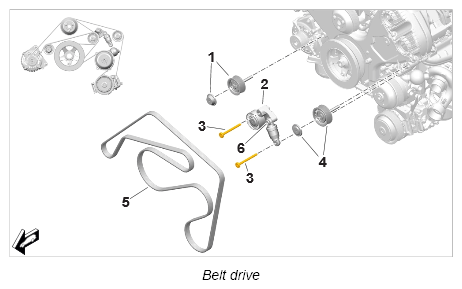

Remove deflection rollers -1, 4- and belt tensioner -2- .

1.1. Lever off the deflection roller covers.
1.2. Unscrew the belt tensioner screws -3- and the deflection roller screws.

1.3. Remove belt tensioner and deflection rollers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnect positive crankcase vent lines from the holders.

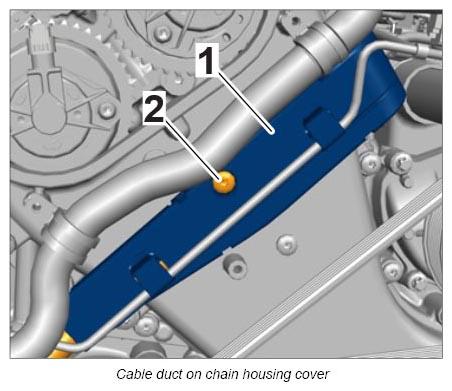

Disconnect cable duct -1- from the chain housing cover.

3.1. Remove screw -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove chain housing cover.

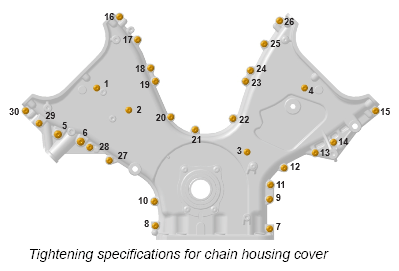

1. 4.1. Loosen screws in the sequence -30 - 1- .
2. 4.2. Remove screws -1 - 30- .
3. 4.3. Carefully lift off the chain housing cover. Lever it off if necessary.

  Fig 1: Chain Housing Cover Screws Tightening Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
