Chain housing cover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

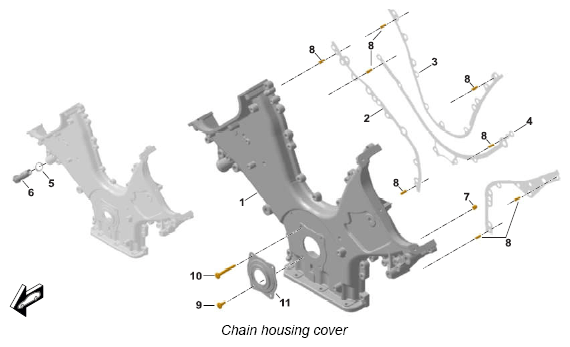

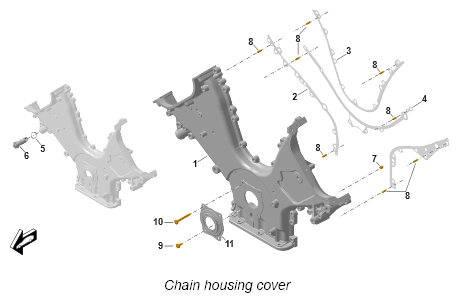

Fig 1: Exploded View Of Chain Housing Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Chain housing cover
2	Outer right seal/replace
3	Inner seal/replace
4	Rib seal/replace
5	Sealing ring/replace
6	Chain tensioner → Tightening torque: 60 Nm (44 ft lb.)
7	Dowel sleeve
8	Straight pin, M6 x 16
9	Aluminum screw, M6/replace → Initial tightening: 4 Nm (3 ft lb.) → Final tightening: +60°
10	Aluminum screw, M6/replace → Initial tightening: 4 Nm (3 ft lb.) → Final tightening: +60°
11	Joint flange/replace
