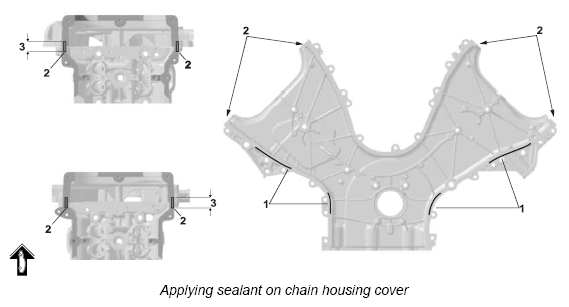

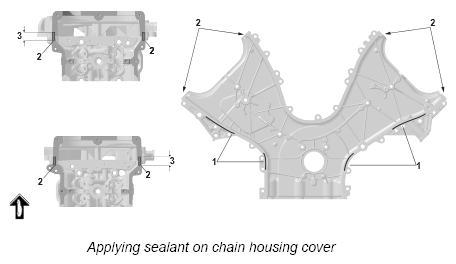

Applying sealant on chain housing cover
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Applying sealant on lower chain housing cover |
| 2 |
Applying sealant on connection point between chain housing cover and cylinder head, top |
| 3 |
Length of sealant: 20 mm |

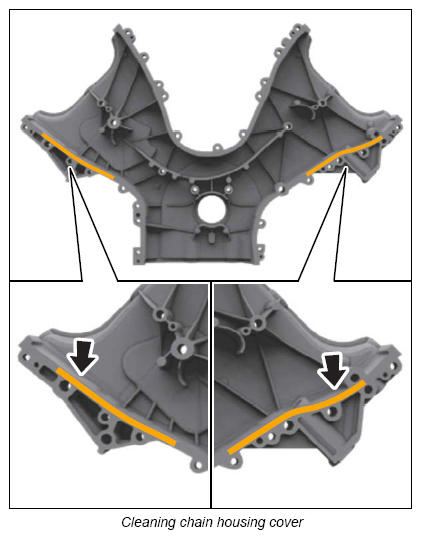

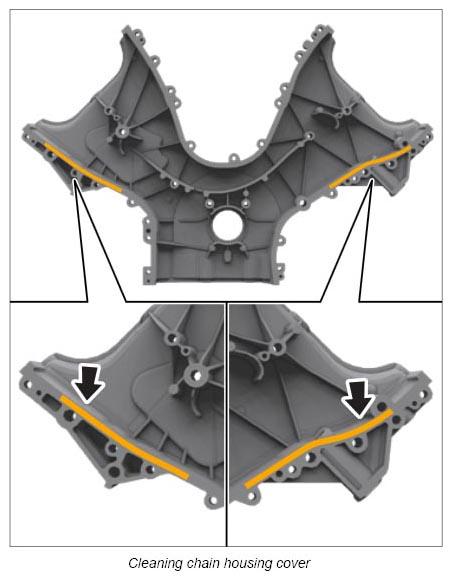

Cleaning chain housing cover:
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Information
Clean sealing faces on the chain housing cover with Loctite 7515 before applying sealant.
