Removing camshafts

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Information

During removal, note the installation position and allocation of the camshafts and bearing covers on a sheet of paper in such a way that they cannot be mixed up.
Protect camshafts and bearing covers from dirt and place the components on a clean surface according to installation position.

Remove camshafts.

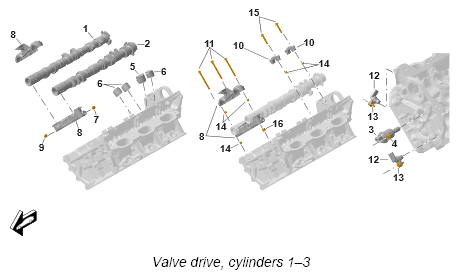

1.1. Loosen screws -11- and -15- slowly and evenly, one after the other from the outside in.
1.2. Remove mounting saddle -8- and bearing cover -10- .

1.3. Remove camshafts and place them on a clean, soft surface.
