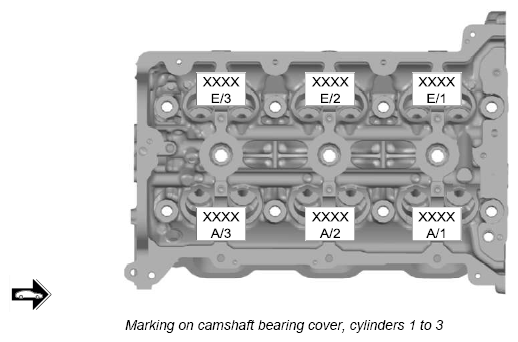

Marking on bearing cover
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

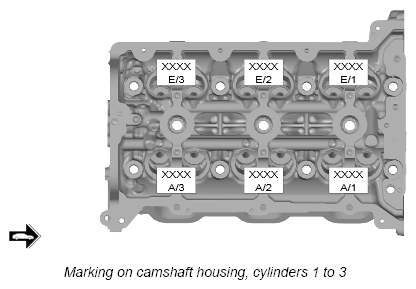

- All markings can be read from the exhaust side/main diagram applies symmetrically for both cylinder heads
| 1 | Matching number for cylinder head/intake camshaft housing, cylinder 1 (E1) |
| 2 | Matching number for cylinder head/intake camshaft housing, cylinder 2 (E2) |
| 3 | Matching number for cylinder head/intake camshaft housing, cylinder 3 (E3) |
| 4 | Matching number for cylinder head/outlet camshaft housing, cylinder 1 (A1) |
| 5 | Matching number for cylinder head/outlet camshaft housing, cylinder 2 (A2) |
| 6 | Matching number for cylinder head/outlet camshaft housing, cylinder 3 (A3) |
| - | Direction of travel |
