Install camshafts

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert camshafts so that the minimum amount of pressure is exerted on the valve springs and coat bearing locations with normal multipurpose grease or engine oil.
  2. Perform further installation in reverse order, paying attention to the following:
    1. 2.1. Tighten screws slowly and evenly.

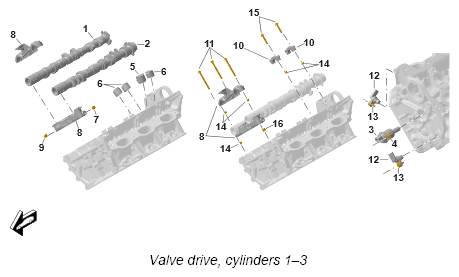

      Item 11: Tightening torque 13 Nm (9.5 ft lb.)

      Item 15: Tightening torque 13 Nm (9.5 ft lb.)

      G12833372Courtesy of PORSCHE CARS NORTH AMERICA, INC.
