WM 150516 Setting timing for camshafts: Tools

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Designation	Type	Number

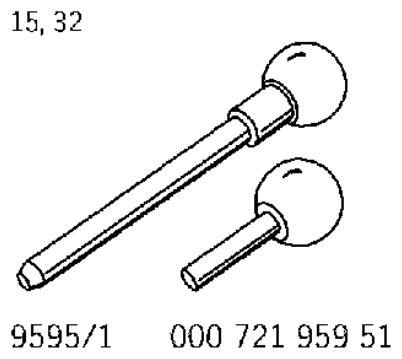

Locating pins	Special tool	9595/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

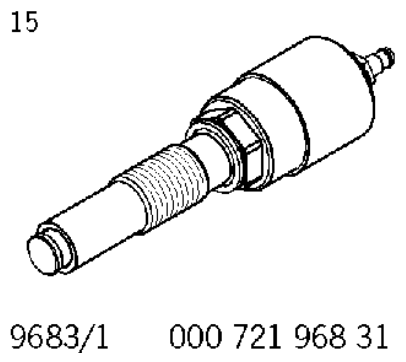

Auxiliary chain tensioner	Special tool	9683/1	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

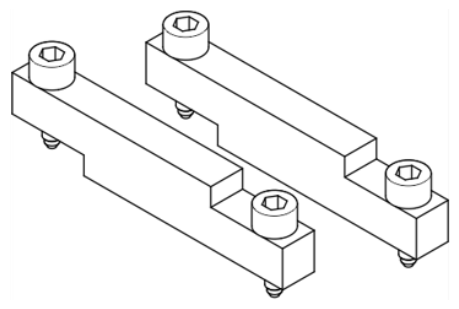

staking tool for valve timing	Special tool	9861	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
socket wrench for camshaft	Special tool	9863	Courtesy of PORSCHE CARS NORTH AMERICA, INC.
