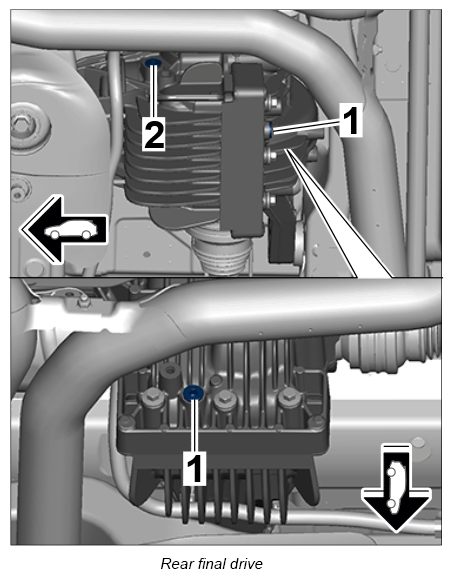

Rear axle differential
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 |
Oil drain plug on rear final drive → Tightening torque: 35 Nm (26 ft lb.)+/-5 Nm (+/-3.5 ft lb.) |
| 2 |
Inspection and filler plug on rear final drive → Tightening torque: 35 Nm (26 ft lb.)+/-5 Nm (+/-3.5 ft lb.) |
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
