Porsche Doppel Kupplung (PDK)
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

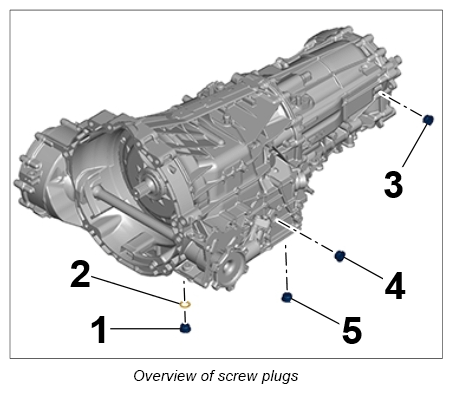

| 1 | ATF drain plug (oil pan) → Tightening torque: 45 Nm (33 ft lb.) |
| 2 | Sealing ring/replace |
| 3 | Transmission oil inspection plug (gear wheels)/replace → Tightening torque: 60 Nm (44 ft lb.) |
| 4 | ATF inspection and filler plug/replace → Tightening torque: 60 Nm (44 ft lb.) |
| 5 | Transmission oil drain plug (gear wheels)/replace → Tightening torque: 60 Nm (44 ft lb.) |
