Final drive

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

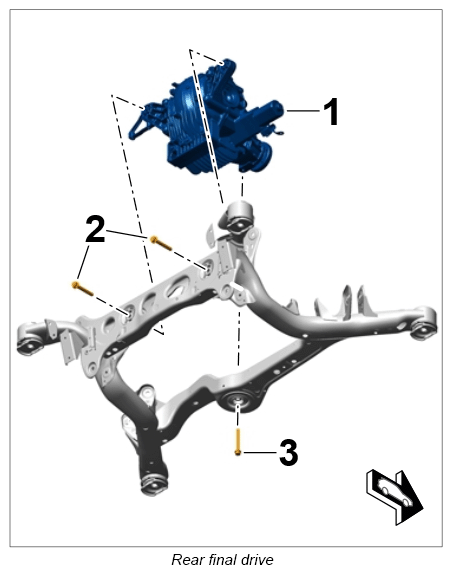

1	Rear final drive
2	Rear final drive to rear axle carrier (rear screws) → Tightening torque: 95 Nm (70 ft lb.)
3	Rear final drive to rear axle carrier (bottom screw) → Initial tightening: 40 Nm (30 ft lb.) → Final tightening: +90°

Servo motor for rear-differential lock → Tightening torque: 13 Nm (9.5 ft lb.)
