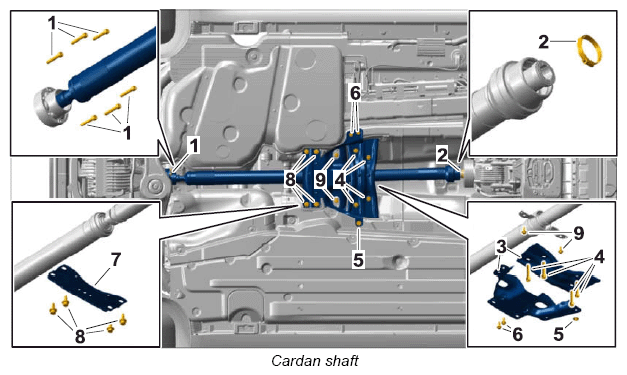

Cardan shaft, tunnel support and heat shield
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Information
| 1 | M8 screws securing cardan shaft to rear axle differential/replace screws and plates -> depending on type → Tightening torque: 10 Nm (7.5 ft lb.) → Tightening torque: 24 Nm (18 ft lb.)+/-1.5 Nm (+/-1 ft lb.) → Torque angle: +90°+/-5° |
| 1 | M10 screws securing cardan shaft to rear axle differential/replace screws and plates → Tightening torque: 18 Nm (13 ft lb.) → Tightening torque: 50 Nm (37 ft lb.)+/-1.5 Nm ft lb.) → Torque angle: +120°+/-5° |
| 2 | Single-lug clip |
| 3 | Heat shield and rear tunnel cross member |
| 4 | → Tightening torque: 55 Nm (41 ft lb.) |
| 5 | → Tightening torque: 2.1 Nm (1.5 ft lb.) |
| 6 | → Tightening torque: 15 Nm (11 ft lb.) |
| 7 | Front tunnel support |
| 8 | → Tightening torque: 55 Nm (41 ft lb.) |
| 9 | → Tightening torque: 20 Nm (15 ft lb.)+/-3 Nm (+/-2 ft lb.) |
