ATF lines

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

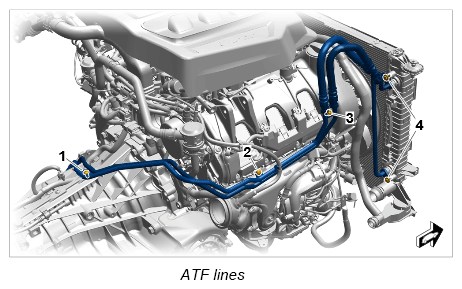

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Fastening screw → Tightening torque: 8 Nm (6 ft lb.)
2	Fastening screw → Tightening torque: 8 Nm (6 ft lb.)
3	Fastening screw for holder → Tightening torque: 8 Nm (6 ft lb.)
4	Fastening screws securing ATF lines to radiator → Tightening torque: 5 Nm (3.5 ft lb.)

If there is no anti-chafing element fitted on the ATF lines in the radiator connection area, this must be retrofitted.

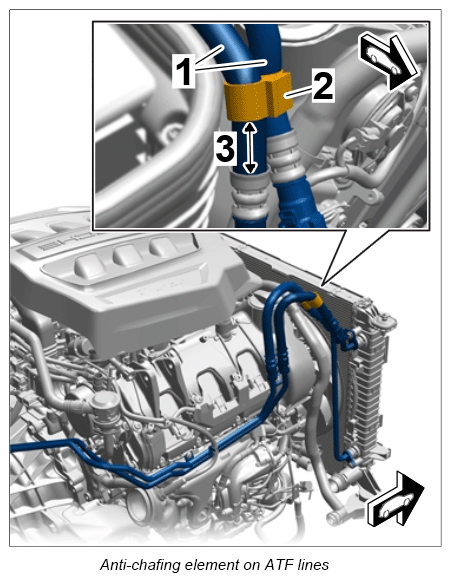

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	ATF lines
2	Anti-chafing element
3	Installation dimension of anti-chafing element: → Adjustment value: 35 mm
