Transmission bracket
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

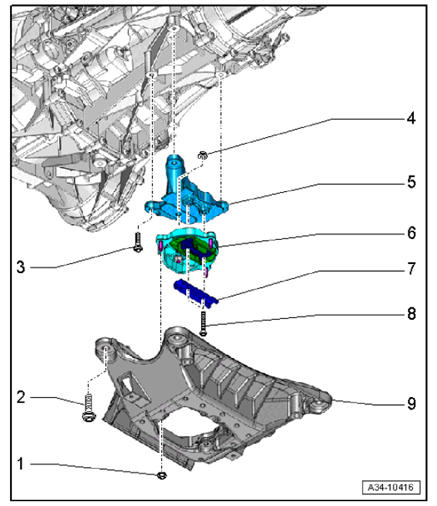

| 1 | Fastening nut → Tightening torque: 20 Nm (15 ft lb.) |
| 2 | Fastening screw → Tightening torque: 70 Nm (52 ft lb.) |
| 3 | Fastening screw → Tightening torque: 40 Nm (30 ft lb.) |
| 4 | Fastening nut → Tightening torque: 20 Nm (15 ft lb.) |
| 5 | Transmission bracket |
| 6 | Transmission mount |
| 7 | Lower lock for transmission mount |
| 8 | Fastening screw, replace! → Tightening torque: 20 Nm (15 ft lb.) → Tightening torque: +90° |
| 9 | Transmission support |
