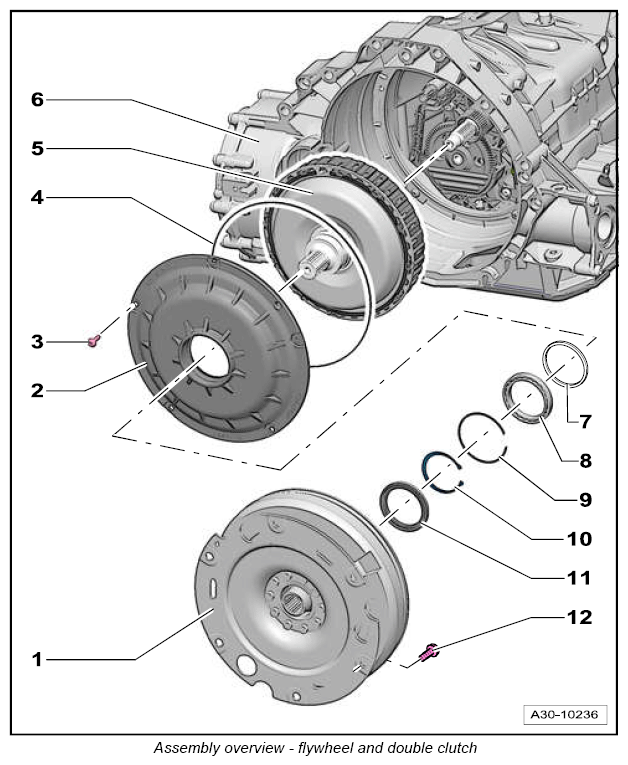

Assembly overview - flywheel and double clutch

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Flywheel
2	Cover on double clutch
3	Screw/observe specified tightening sequence! /replace → Initial tightening: 1 Nm (0.5 ft lb.) → Torque angle: +90° → Final tightening: +10 Nm (+7.5 ft lb.)
4	O-ring/replace
5	Double clutch
6	Transmission housing
7	Thrust washer, installed on certain types.
8	Ball bearing
9	Circlip → always use new circlip following removal.
10	Circlip → always use new circlip following removal.
11	Input shaft sealing ring → always use new sealing ring following removal.
12	Screw/replace → Tightening torque: 60 Nm (44 ft lb.)

Tightening torque and tightening sequence for double clutch cover:

Tighten screws in the sequence -1 - 5- in three steps as follows:

Screw in evenly by hand until the screw head is touching the clutch cover.
Tighten one after the other in → Torque angle: +90° steps until the cover on the double clutch is touching the transmission housing.
Tighten to → Final tightening: +10 Nm (+7.5 ft lb.) .

Fig 1: Double Clutch Cover Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
