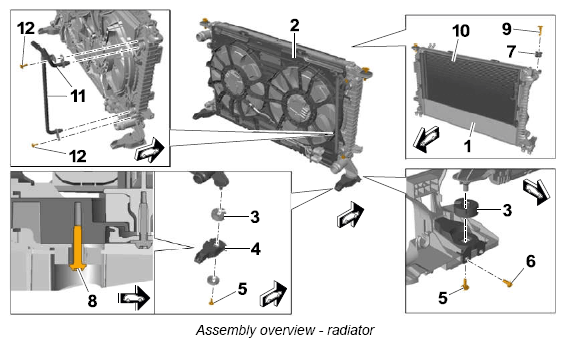

Group 19: Radiator

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Radiator
2	Fan module
3	Lower bearing
4	Bottom holder
5	Screw → Tightening torque: 6 Nm (4.5 ft lb.)
6	Screw → Tightening torque: 4.5 Nm (3 ft lb.)+/-0.5 Nm (+/-0.5 ft lb.)
7	Upper bearing
8	Screw → Tightening torque: 4.5 Nm (3 ft lb.)+/-0.5 Nm (+/-0.5 ft lb.)
9	Fastening pin
10	Air-conditioning condenser
11	ATF line
12	Screw → Tightening torque: 5 Nm (3.5 ft lb.)
