Oil pump
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

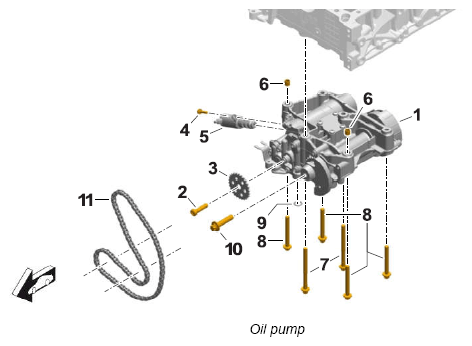

| 1 |
Oil pump |
| 2 |
Screw → Initial tightening: 20 Nm (15 ft lb.) → Final tightening:+90° |
| 3 |
Oil pump sprocket |
| 4 |
Screw → Tightening torque: 10 Nm (7.5 ft lb.) |
| 5 |
Oil pressure control valve to oil pump |
| 6 |
Dowel sleeve, 11M6 x 10 |
| 7 |
Screw, M8 x 100/replace → Initial tightening: 10 Nm (7.5 ft lb.) → Final tightening:+110° |
| 8 |
Screw, M8 x 70/replace → Initial tightening: 10 Nm (7.5 ft lb.) → Final tightening:+100° |
| 9 |
O-ring, 11.3 x 3/replace |
| 10 |
Screw, M10 x 45/replace → Initial tightening: 20 Nm (15 ft lb.) → Final tightening:+30° |
| 11 |
Oil pump drive chain |
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

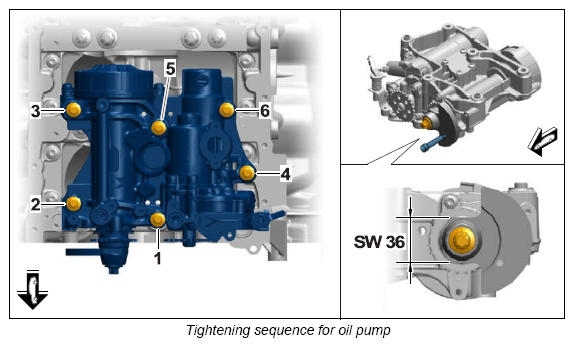

| 1+ 5 |
Screw, M8 x 100 |
| 2-4+ 6 |
Screw, M8 x 70 |
