Oil pump drive
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

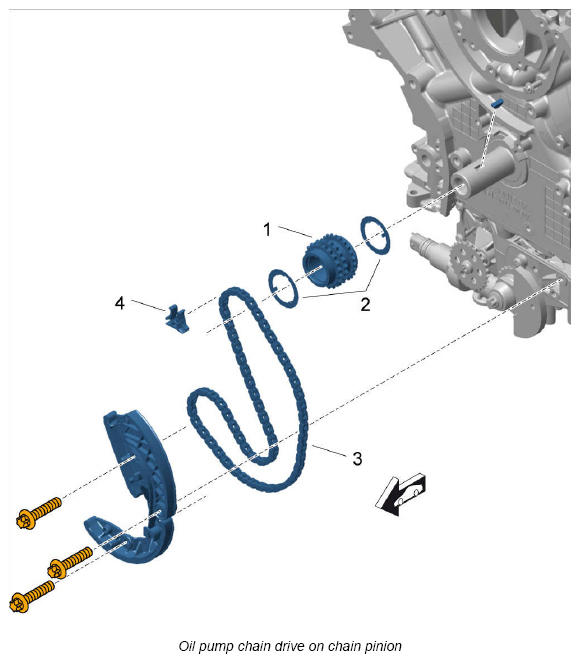

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Crankshaft sprocket |
| 2 |
Friction plates/diamond washers; can be re-used |
| 3 |
Drive chain for oil pump balance shaft module |
| 4 |
Screw securing timing chain (screw into crankcase) |
| - |
Guide and tensioning rail module |
| - |
Fastening screws (for tightening specifications, see oil pump) |
| - |
Spring wedge for crankshaft |

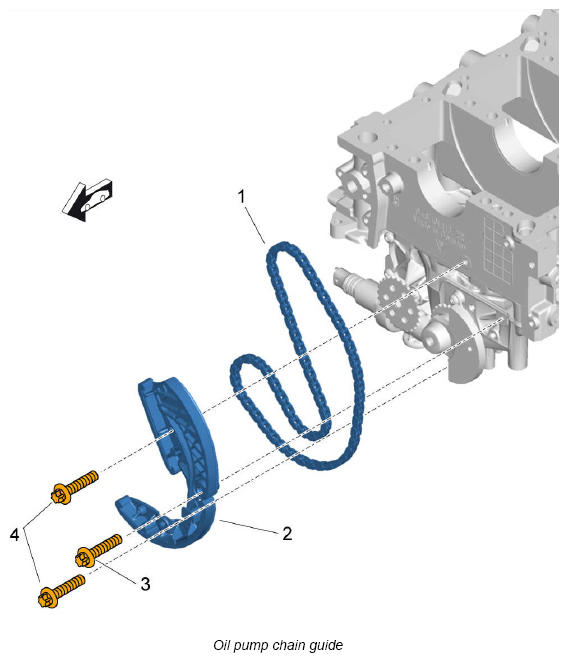

 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Drive chain for oil pump balance shaft module |
| 2 |
Guide and tensioning rail module |
| 3 |
Fastening screw, M6 x 35 → Tightening torque: 13 Nm (9.5 ft lb.) |
| 4 |
Fastening screws, M6 x 20 → Tightening torque: 13 Nm (9.5 ft lb.) |
