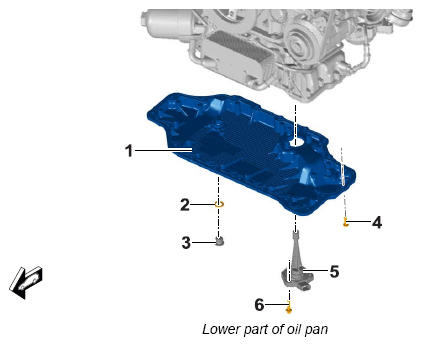

Lower part of oil pan
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
| 1 |
Oil pan |
| 2 |
Sealing ring, A16 x 22/use new sealing ring following removal |
| 3 |
Oil drain plug, M16 → Tightening torque: 28 Nm (21 ft lb.) |
| 4 |
Screw, M6 x 20 → Tightening torque: 10 Nm (7.5 ft lb.) |
| 5 |
Oil level sensor |
| 6 |
Screw, M6 x 25 → Tightening torque: 10 Nm (7.5 ft lb.) |
