Oil lines and covers

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

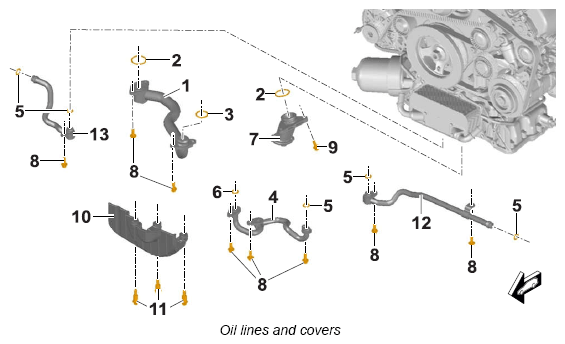

1	Oil pressure pipe
2	O-ring, 28 x 3
3	O-ring, 22 x 3
4	Oil line, pressure control
5	O-ring, 10 x 3
6	O-ring, 17 x 3
7	Intake pipe on oil pump
8	Screw, M6 x 16 → Tightening torque: 12 Nm (9 ft lb.)
9	Screw, M6 x 20 → Tightening torque: 12 Nm (9 ft lb.)
10	Sprocket cover
11	Screw → Tightening torque: 12 Nm (9 ft lb.)
12	Oil line for turbocharger, cylinders 4-6
13	Oil line for turbocharger, cylinders 1-3
	O-rings must always be replaced following removal; grease new O-rings!

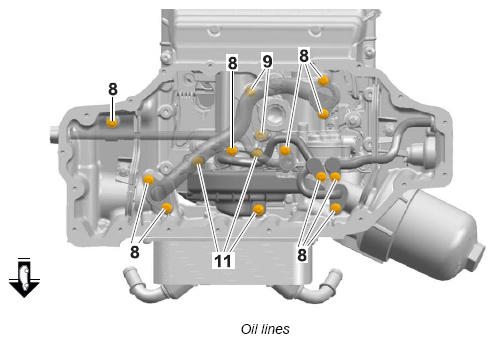

View from below:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

8	Screw, M6 x 16 → Tightening torque: 12 Nm (9 ft lb.)
9	Screw, M6 x 20 → Tightening torque: 12 Nm (9 ft lb.)
11	Screw → Tightening torque: 12 Nm (9 ft lb.)
