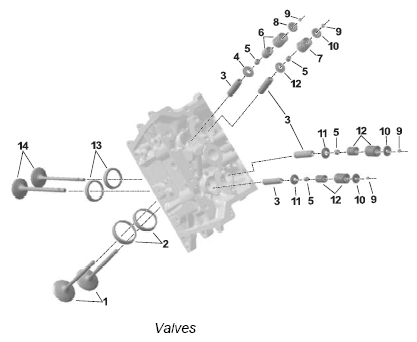

Group 15: Valves
WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| 1 | Intake valve |
| 2 | Valve-seat ring, intake |
| 3 | Valve guide |
| 4 | Lower valve-spring plate, intake |
| 5 | Valve-stem seal |
| 6 | Valve spring set, intake |
| 7 | Single spring set |
| 8 | Upper valve-spring plate, intake |
| 9 | Valve collet |
| 10 | Valve-spring plate |
| 11 | Valve spring set, outlet |
| 12 | Valve-spring plate |
| 13 | Valve-seat ring, outlet |
| 14 | Outlet valve |
