Valve drive

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

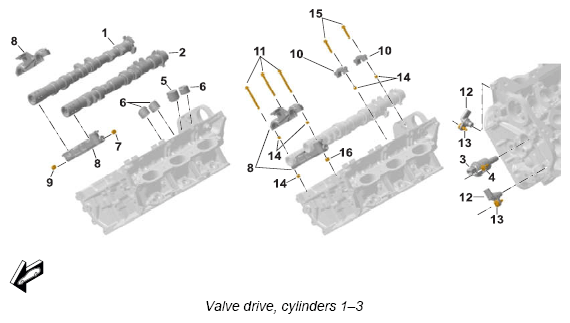

Valve drive, cylinders 1-3

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Outlet camshaft, cylinders 1-3/grease bearing surfaces (Shell Darina APC Grease 2)
2	Intake camshaft, cylinders 1-3/grease bearing surfaces (Shell Darina APC Grease 2)
3	Hydraulic valve for variable valve control
4	Screw, BM5 x 12 → Tightening torque: 6 Nm (4.5 ft lb.)
5	Switching tappet/coat with engine oil
6	Bucket tappet/coat with engine oil
7	Stopper 11.2
8	Mounting saddle/grease bearing surfaces (Shell Darina APC Grease 2)
9	Stopper 6.7
10	Housing/grease bearing surfaces (Shell Darina APC Grease 2)
11	Screw, BM6 x 70 → Tightening torque: 13 Nm (9.5 ft lb.)
12	Hall sender
13	Aluminum screw, M6 x 16/replace → Initial tightening: 4 Nm (3 ft lb.) → Final tightening:+60°
14	Dowel sleeve
15	Screw, M6 x 35 x 25 → Tightening torque: 13 Nm (9.5 ft lb.)
16	Dowel sleeve
