Tightening specifications for chain housing cover

WARNING: This page is about a different car, the 2016 Porsche Macan and 2015 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

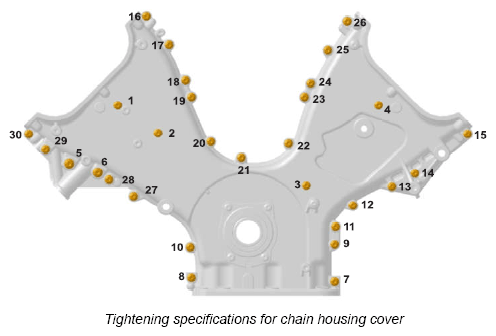

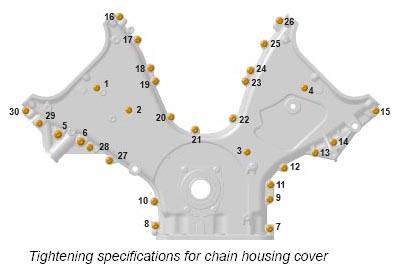

Fig 1: Chain Housing Cover Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1-30	Tightening sequence
1-4	Screw, M6 x 55
5+ 6	Screw, M8 x 55
7-12	Screw, M6 x 30
13+ 14	Screw, M6 x 55
15-28	Screw, M6 x 30
29	Screw, M6 x 55
30	Screw, M6 x 30
1-4+ 7-30	Screw, M6 → Initial tightening: 4 Nm (3 ft lb.) → Final tightening:+90°
5+ 6	Screw, M8 → Initial tightening: 10 Nm (7.5 ft lb.) → Final tightening:+90°

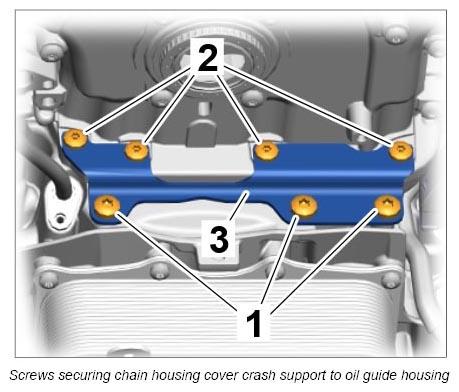

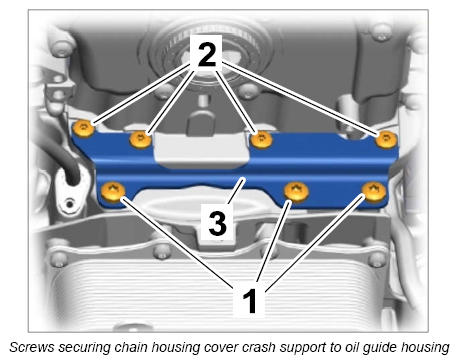

Crash support to oil guide housing/chain housing cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Screw, M8 x 20 → Tightening torque: 23 Nm (17 ft lb.)
2	Aluminum screw, M6 x 30/replace → Initial tightening: 4 Nm (3 ft lb.) → Final tightening:+90°
3	Crash support
