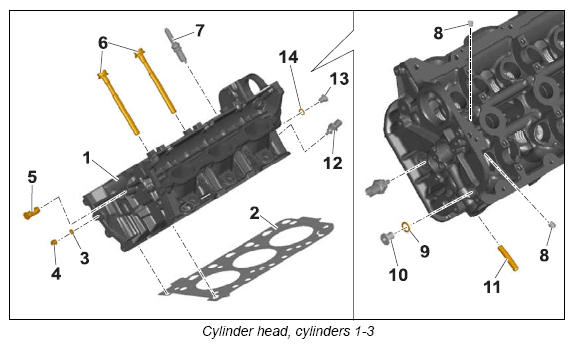

Cylinder head, cylinders 1-3

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Cylinder head
2	Seal/replace
3	Cover B10
4	Stopper 11.2
5	Restrictor for variable valve control (VVS) → Tightening torque: 2 Nm (1.5 ft lb.)
6	Screw, M11 x 1.5
7	Spark plug
8	Screw plug, M8 x 1 → Tightening torque: 5 Nm (3.5 ft lb.)
9	Sealing ring, A10 x 13.5
10	Screw plug, M10 x 1
11	Threaded bolt, 8 x 42 → Tightening torque: 15 Nm (11 ft lb.)
	Bond in with: Loctite 272 or Dreibond 5454
12	Temperature sensor → Initial tightening: 15 Nm (11 ft lb.) → Final tightening:+20°
13	Screw plug for secondary air duct, M12 x 1.5 → Tightening torque: 15 Nm (11 ft lb.)
14	Wire ring, A12 x 16/replace

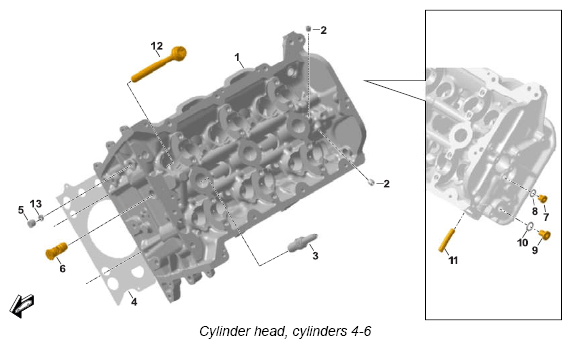

Cylinder head, cylinders 4-6

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1	Cylinder head
2	Screw plug, M8 x 1.0 → Tightening torque: 5 Nm (3.5 ft lb.)
3	Spark plug
4	Seal/replace
5	Stopper 11.2
6	Restrictor for variable valve control (VVS) → Tightening torque: 2 Nm (1.5 ft lb.)
7	Screw, M10 x 1.0 → Tightening torque: 8 Nm (6 ft lb.)
8	Sealing ring, A10 x 13.5/replace
9	Screw plug, M12 x 1.5 → Tightening torque: 15 Nm (11 ft lb.)
10	Sealing ring, A12 x 16/replace
11	Threaded bolt, 8 x 42 → Tightening torque: 15 Nm (11 ft lb.)
	Bond in with: Loctite 272 or Dreibond 5454
12	Cheese head bolt, M11 x 1.5
13	Cover B10
